ACF Bonder / Production Assembly / Repair Equipment

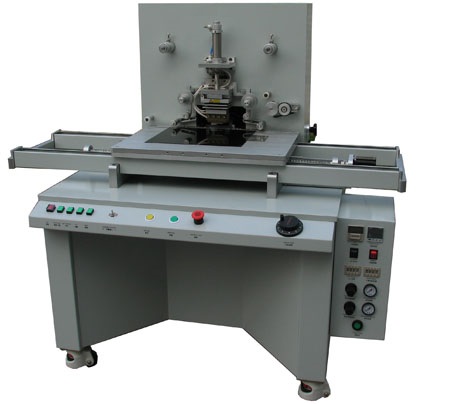

1. ACF Pre-attachment Machine Model 710

ACF Pre-attachment

Function :
To automatically peel and cut 1 or 2 layers ACF tape, and then attach to LCD, PCB, FPC, or TAB etc.

Basic Specifications :
Heating method : constant heating
Applicable size of ACF with : 1~6 mm
Max. length of bonding objects : Length 10 to 120 mm/ width 10 to 120mm
Accuracy : +/- 0.1mm
Temperature range : Room temp to 300degC

2. ACF Bonder (Constant Heat) Model 3T830 (Single Camera)

830 heat bonder



Function :
Widely used as Thermocompression bonding and heat forming.
For example, heat seal connector bonding, ACF bonding of small objects

Basic Specifications :
Heating method : Constant Heating
Desktop size, easy and quick to operate
1 or (optional 2) sets of vision alignment system
Machine body made by Titanium alloy, strong and stable
Overall size : 360x400x460 mm
Cylinder size : 50x75 mm
Bonding blade : 150x60 mm
Temperature range : Room temp to 400degC
Total weight : 30KG
Power supply : AC220V 1050W

3. Heating Bonding Machine Model 3T840-2

ACF Heat Bonding

Function :
Connects plastics on to metal with adhesive tape through heat bonding

Basic Specifications :
Heating method : Constant Heating
Desktop size, easy and quick to operate
Vision : None
Machine body made by Aluminum alloy, strong and stable
Overall size : 460x400x720 mm
Cylinder size : 50 mm (adjustable stroke)
Temperature range : Room temp to 400degC
Total weight : 140KG
Power supply : AC220V 210W





4. ACF Bonder (Constant Heat) Model 3T860-2 (Dual Camera)

3T860 ACF bonder

Function :
Bonding of Heat seal connector (HSC), ACF bonding, FPC to LCD/PCB
For examples : LCD modules, Telephone sets, LCD games, AV products, electronic translators, PDA, cell phones, digital cameras, and computer monitors...

Basic Specifications :
Heating method : Constant heating
Temperature : Room temp to 400degC
Pressure : 20 - 100 kgf/cm2
Max length of bonding blade : 120 mm
Size : 380x450x520 mm
Alignment camera : 2 sets CCD camera system
Power Supply : 220VAC, 1100W
Total weight : 50kg

5. ACF Bonder (Pulse Heat) Model 3T930-2 (Dual Camera)

930 bonder

Function :
ACF bonding for TAB/FPC onto TFT/LCD
Soft soldering to connect FPC, FFC onto PCB
For examples, LCD modules in mobile phones, electronic translators, PDA, digital cameras, pins of computers

Basic Specifications :
Heating Method : Pulse heat
Overall size : 480x600x530 mm
Temperature range : room temp to 400degC
Total weight : 90kg
Bonding blade : Max 60x2 mm
Power supply : 220VAC, 3000W
Max. working current : 1700A

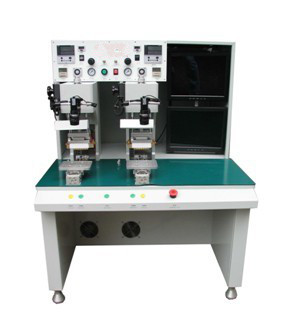

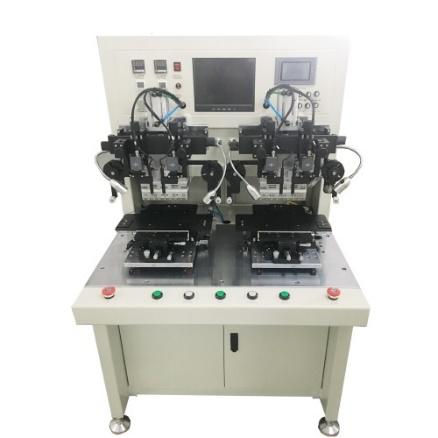

6. ACF Bonder (Constant Heat) 3T850-2  for Mass Production

ACF Heat bonder Function:
Using heat bonding to ACF bond HSC, FPC/Flex/TAB on to LCD and PCB.
Product application includes mobile phones, MP3 and 7" LCD modules
Constant Heating head, Dual head twin platform caters to mass production and higher productivity
High definition cameras.

Basic Specifications:
Heating Method : Constant Heating
Max Product Size : 127x127mm
Temperature Range : RT to 400degC
Camera : Black/white 1/3 interface
Power : AC220V 850W
Pressure Range : 9-42 kgf/cm2
Machine Outline : 1100x860x1400mm
Gross weight : 200KG


7. ACF Bonder (Pulse Heat) 3T950-2 for Mass Production

ACF Production Bonder Functions:
ACF Bonds TAB/FPC/TAB to LCD/FCB
Solders FPC.FFC to PCB
Application: Mobile phones, LCD modules for Digital gadgets, Camera modules, PC peripherals soldering etc.

Basic Specifications:
Heating Methods : Pulse Heat
Dual Head Twin Stage
Bond head : Titanium Alloy
Max Bond head size : 65mm(L)
Power : AC220V, 50-60Hz 3000W
Air supply : 0.5MPa

TFT FPD Repair Machine


8. TFT FPD Repair Bonder Model 3T760 (LCD 9" - 70")

FPD Repair Bonder

Function :
ACF bonding for TAB on to LCD and PCB board
Provides with cell absorption carrier, crimping and TAB suction nozzle
Programmable table movement for productive assembly work

Basic Specifications :
Heating Method : Pulse heat (Optional constant heat)
Overall size : 2000x1050x1600 mm
Temperature range : room temp to 500degC
Total weight : 250kg
LCD Size : Max 70 inch
LCD holding : Vacuum
Power supply : 220VAC, 3000W
